In the ever-evolving world of construction, ensuring the safety and longevity of structures is paramount. Among the myriad of materials used, concrete beams are ubiquitous, supporting everything from towering skyscrapers to critical infrastructure in the energy sector. However, these beams are not immune to the ravages of time and environmental stress, which can lead to cracks and holes that, if left unchecked, can compromise structural integrity and pose significant risks. Enter Bin Fu, a researcher from the School of Civil Engineering at Taizhou University in China, who is pioneering a new method to monitor and predict damage in concrete beams using embedded piezoelectric sensors.
Fu’s innovative approach leverages the properties of PZT-5H, a type of piezoelectric material known for its high piezoelectric coefficients and excellent performance. The sensor, a sophisticated assembly of PZT-5H sheet, epoxy resin layer, concrete shell, and shielding wire, is designed to be embedded within concrete beams. “The idea is to have a sensor that can withstand the harsh conditions within concrete and provide real-time data on the structural health of the beam,” Fu explains.

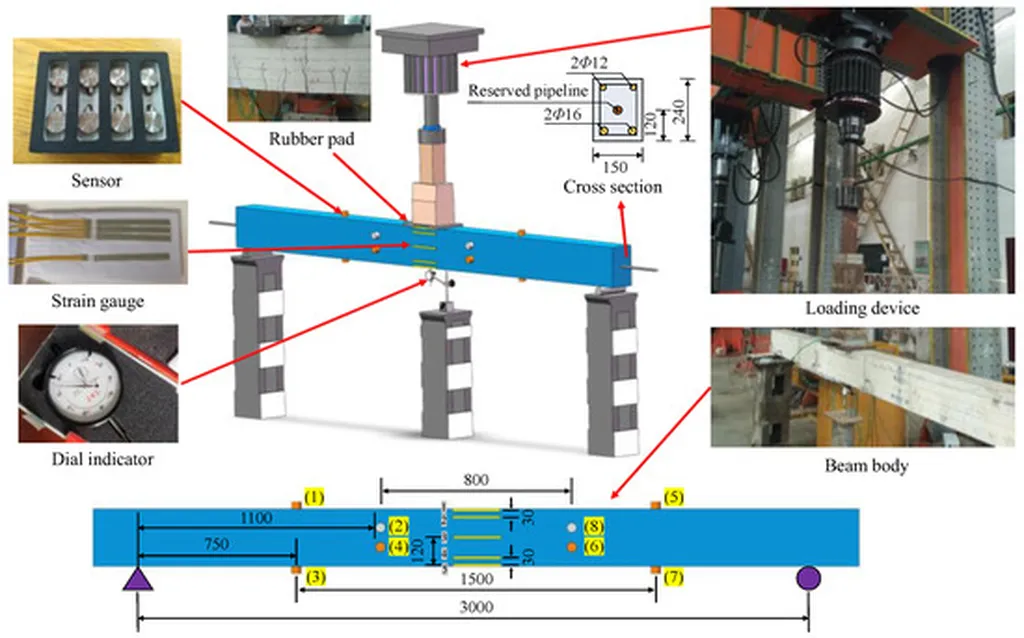

The sensor’s effectiveness was put to the test through a series of electrical performance tests, signal stability tests, and sensitivity calibrations. Once validated, the sensors were embedded in concrete specimens to monitor stress wave signals. The fluctuation method was employed to observe how signal amplitude varied with the degree of damage, providing a window into the beam’s structural health.
One of the most compelling aspects of Fu’s research is the development of a new concrete beam crack damage index, Id. This index, derived from wavelet packet energy decomposition, offers a quantitative measure of crack development. By analyzing changes in Id, engineers can estimate the depth of cracks and even approximate their location within the beam. “This level of precision is crucial for preventive maintenance and ensuring the safety of structures,” Fu notes.
The implications of this research are far-reaching, particularly for the energy sector. Pipelines, power plants, and other critical infrastructure often rely on concrete structures that are exposed to extreme conditions. Real-time monitoring of these structures can prevent catastrophic failures, reduce maintenance costs, and enhance overall safety. As Fu’s work gains traction, it could revolutionize the way we approach structural health monitoring, making our infrastructure more resilient and reliable.
The research, published in Case Studies in Construction Materials, opens up new avenues for exploration. Future developments could see these sensors integrated into smart construction materials, creating structures that can self-diagnose and report their health status. This could lead to a paradigm shift in construction, where preventive maintenance is the norm, and structural failures are a thing of the past. As we stand on the cusp of this technological revolution, Fu’s work serves as a beacon, guiding us towards a future where safety and sustainability go hand in hand.
