In the quest for efficient energy storage solutions, researchers from the University of Coimbra have made a significant stride, potentially reshaping the landscape of energy management. Led by Ivo Silva from the Department of Mechanical Engineering, the team has developed a novel approach to optimize a Carnot Battery, a technology that could revolutionize how we store and utilize energy.

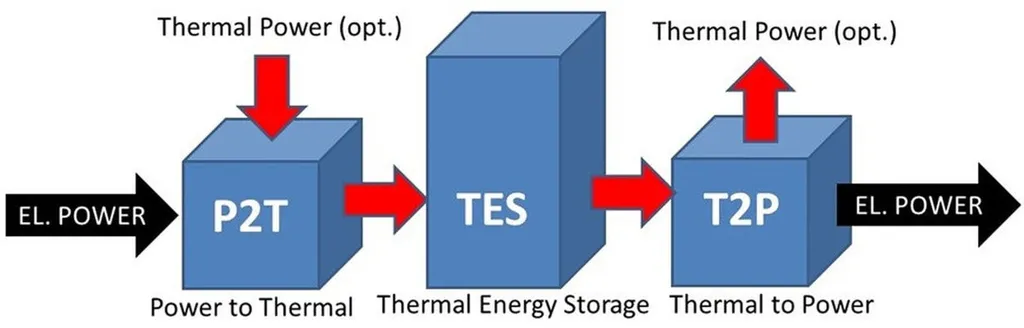

The Carnot Battery, a concept that combines a Heat Pump and an Organic Rankine Cycle, is designed to store energy in the form of heat, which can then be converted back into electricity when needed. This technology promises to address some of the most pressing challenges in the energy sector, such as intermittency of renewable energy sources and the need for efficient energy storage solutions.
Silva and his team have taken this concept a step further by employing multi-objective optimization techniques to balance three key performance parameters: energetic, exergetic, and economic. “Our goal was to find the optimal operating conditions that would not only maximize thermodynamic efficiency but also ensure economic viability,” Silva explained. This approach allows for a more holistic evaluation of the system, considering not just the technical aspects but also the economic implications.
The researchers established mathematical models for six different Carnot Battery configurations and analyzed sixteen combinations of environmentally friendly working fluids. Each combination was scored based on its performance, with the top-performing set undergoing further multi-objective optimization to determine the optimal operating conditions.
The results were promising. The use of regenerators in both the heat pump and the organic Rankine cycle, along with the working fluid combination R1233zd(E)-R1233zd(E), achieved an optimal balance between thermodynamic and economic performance. Other combinations using R1234ze(Z) in the heat pump cycle also showed excellent results across all systems.
The design condition of the lab-scale system achieved an impressive round-trip efficiency of 81.30% and a levelized cost of storage (LCOS) of 1.09 €/kWh. These figures indicate that the Carnot Battery could be a viable solution for energy storage, offering both high efficiency and economic competitiveness.
The implications of this research are far-reaching. As the energy sector continues to shift towards renewable sources, the need for efficient energy storage solutions becomes increasingly important. The Carnot Battery, with its high round-trip efficiency and economic viability, could play a crucial role in this transition.
Moreover, the multi-objective optimization approach used in this study could set a new standard for evaluating energy storage technologies. By considering multiple performance parameters, this approach allows for a more comprehensive assessment of a system’s potential, ensuring that both technical and economic aspects are taken into account.
Silva’s work, published in the journal Energy Conversion and Management: X, which translates to Energy Conversion and Management: X, marks a significant step forward in the development of energy storage technologies. As the energy sector continues to evolve, technologies like the Carnot Battery could become integral to a more sustainable and efficient energy future.
The research not only paves the way for more efficient energy storage solutions but also highlights the importance of a multi-faceted approach to problem-solving. By balancing thermodynamic, exergetic, and economic performance, Silva and his team have demonstrated a method that could be applied to a wide range of technologies, driving innovation and progress in the energy sector.
