In the quest to enhance the performance of martensitic stainless steels, a team of researchers led by Zhengzhong Xi from the School of Technology at Beijing Forestry University has made significant strides. Their work, published in the journal *Materials & Design* (which translates to *Materials & Design* in English), delves into the intricate world of plasma nitriding and its impact on the microstructure and mechanical properties of AISI 422 martensitic stainless steel. This research could have profound implications for the energy sector, particularly in applications requiring high strength and durability.
The study combines experimental work with advanced simulations to uncover the secrets of plasma nitriding at 560°C. Xi and his team observed a fascinating sequence of phase transitions. Initially, Guinier-Preston (GP) zones form, which then transform into coherent CrN precipitates. These precipitates continue to grow and coarsen, creating a gradient of structural changes throughout the material.

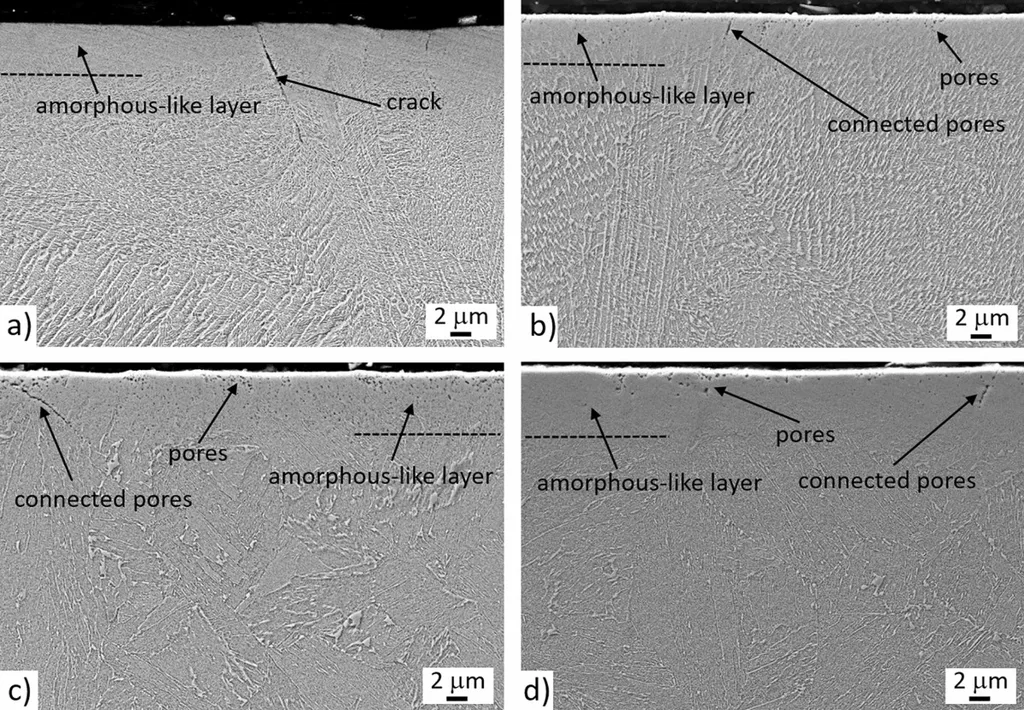

Using advanced characterization techniques such as Transmission Electron Microscopy (TEM), X-ray Diffraction (XRD), and Geometric Phase Analysis (GPA), the researchers revealed a depth-dependent structural gradient. Near the matrix interface, CrN precipitates exhibit a needle-like morphology, measuring about 100 nanometers in length and 5 nanometers in width. As you move to shallower regions, these precipitates become coarser and rod-like, measuring 50 nanometers in length and 20 nanometers in width. The surface layers are dominated by γ′-Fe4N phases, which exhibit residual tensile stress. Interestingly, the peak compressive stress of -550 MPa was observed at a depth of 150 micrometers, attributed to the coherent strain fields arising from the lattice mismatch between the CrN precipitates and the matrix.
Phase-field simulations played a crucial role in this study, successfully replicating the nucleation, anisotropic growth, and coarsening of CrN precipitates. These simulations aligned closely with the experimental observations, providing a comprehensive understanding of the underlying mechanisms.
“The saddle-shaped residual stress profile observed in our study is a result of nitrogen diffusion-induced lattice expansion, strain relaxation during precipitate coarsening, and the contraction of the γ′-Fe4N phase,” explained Xi. This understanding establishes a crucial microstructure-property relationship, offering theoretical support for the industrial-scale production of nitrided martensitic stainless steels.
The implications of this research are significant for the energy sector. Martensitic stainless steels are widely used in power generation, oil and gas, and other high-demand applications. Enhancing their mechanical properties through plasma nitriding can lead to more durable and efficient components, reducing maintenance costs and improving overall performance.
As Xi noted, “Our findings provide a solid foundation for optimizing the nitriding process and tailoring the properties of martensitic stainless steels for specific applications.” This research not only advances our scientific understanding but also paves the way for practical innovations in the energy sector.
In summary, the work by Xi and his team represents a significant step forward in the field of materials science. By unraveling the complexities of plasma nitriding, they have opened up new possibilities for enhancing the performance of martensitic stainless steels, with far-reaching implications for the energy industry.
