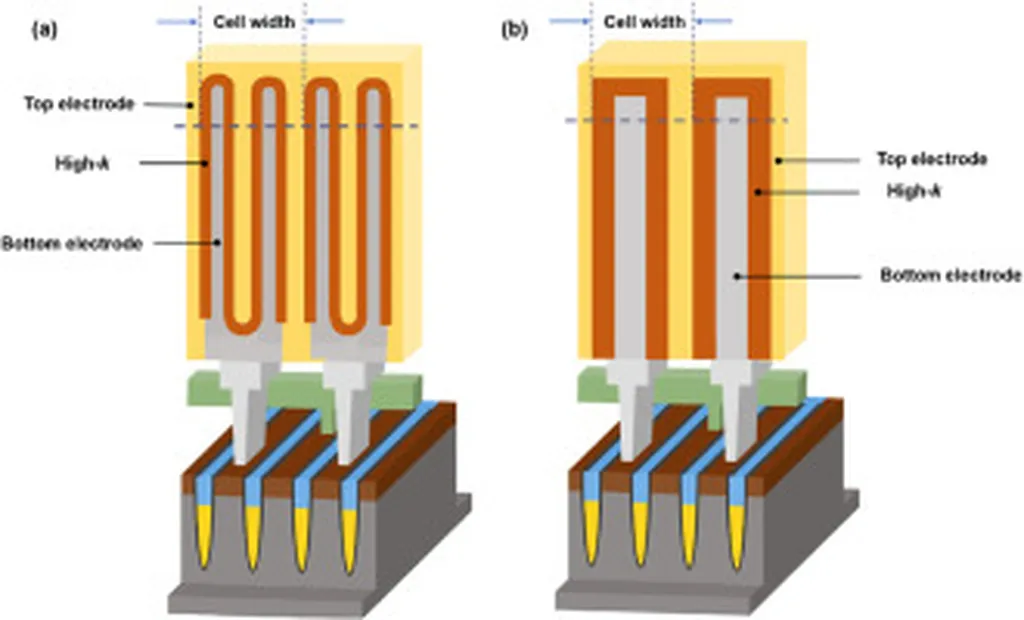

In the realm of advanced materials and semiconductor manufacturing, a groundbreaking study has emerged that could significantly impact the energy sector, particularly in the development of next-generation memory devices. Researchers from the Department of Mechanical Engineering at Pohang University of Science and Technology (POSTECH) in South Korea have introduced a novel approach to enhance the properties of Al-doped TiO2 (ATO), a high-k dielectric material crucial for dynamic random access memory (DRAM) applications.
The study, led by Gyuha Lee, addresses a longstanding challenge in the fabrication of ATO using atomic layer deposition (ALD). Traditional methods often result in crystallinity loss and an inability to reduce inherent oxygen vacancies, which are detrimental to the material’s performance. The research team’s innovative solution involves a single-step, in-situ Ar/O2 post-doping plasma (PDP) process immediately following the incorporation of the Al dopant.
“This PDP process is a game-changer,” says Lee. “It enables simultaneous atomic-scale dopant migration-mediated crystallization and oxygen vacancy annihilation, which we haven’t seen before in conventional ALD methods.”
The implications of this discovery are profound. By reducing dopant-induced lattice distortion and promoting highly crystallized seed layer-like surfaces, the PDP process facilitates strong rutile-phase recovery and enhanced lattice-matched growth. This leads to a significant increase in the dielectric constant and a substantial reduction in leakage current density, addressing a common trade-off in the field.
“The PDP process not only improves the material’s properties but also opens up new possibilities for its application in high-performance memory devices,” Lee explains. “This could have a transformative impact on the energy sector, particularly in the development of more efficient and reliable electronic devices.”
The study, published in the International Journal of Extreme Manufacturing (translated as “International Journal of Ultra-Precision Manufacturing”), highlights the potential of this novel approach to shape future developments in the field. As the demand for advanced memory devices continues to grow, the need for innovative solutions to enhance material properties becomes increasingly critical. This research offers a promising avenue for achieving these goals, paving the way for more efficient and sustainable energy technologies.
The commercial impacts of this research could be far-reaching, particularly in the semiconductor industry. By improving the performance of high-k dielectrics, the PDP process could lead to the development of more advanced and energy-efficient memory devices, which are essential for a wide range of applications, from consumer electronics to data centers and high-performance computing.
As the world continues to push the boundaries of technological innovation, research like this serves as a reminder of the critical role that advanced materials play in driving progress. The work of Gyuha Lee and his team at POSTECH represents a significant step forward in this endeavor, offering new insights and opportunities for the future of the energy sector.
