In the quest to enhance the quality and performance of high silicon graphited steel, a team of researchers led by Qi Fengyou has uncovered significant insights that could reshape the energy sector’s approach to material science. The study, published in *Teshugang* (which translates to *Iron and Steel*), delves into the intricate world of soft-reduction processes and their profound impact on the microstructure and graphite particle precipitation behavior of high silicon graphited steel.

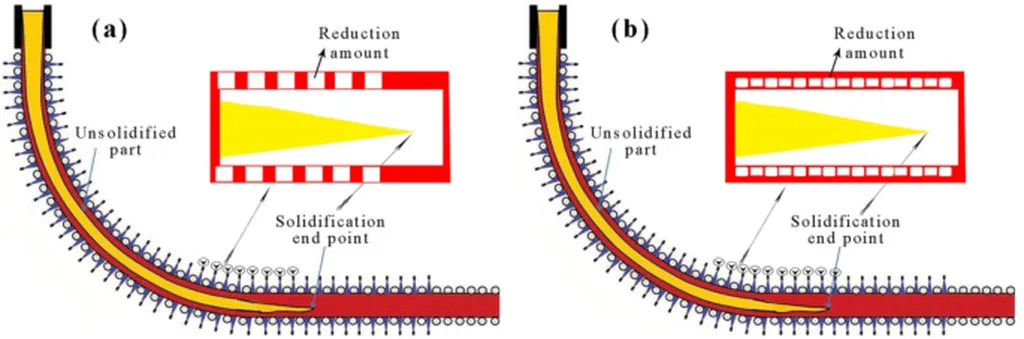

The research systematically explores the effects of soft reduction—both with and without 5 passes totaling a 7 mm reduction—and subsequent heat treatments, including salt bathing at 440°C and 500°C, and tempering at 630°C and 680°C. The goal? To understand how these processes influence carbon and silicon segregation in high-silicon graphited steel billets and their subsequent effects on microstructure evolution and graphite precipitation behavior in wire rods.
Using industrial continuous casting, heat treatment trials, and advanced characterization tools like metallographic microscopy and SEM, the team found that implementing soft reduction significantly improves the centerline quality of free-cutting graphited steel billets. This process effectively reduces carbon and silicon segregation at the billet core, a critical factor in enhancing the material’s overall performance.
Qi Fengyou, the lead author of the study, emphasized the importance of these findings: “Our research demonstrates that soft reduction is not just a minor adjustment but a game-changer in the production of high silicon graphited steel. It’s a step forward in ensuring the quality and reliability of materials used in critical applications.”
The study also revealed that bainite transformation significantly occurs in both non-soft-reduction and soft-reduction strand hot-rolled wire rods during salt baths at 440°C and 500°C. Notably, acicular bainite was more readily formed under conditions of high carbon and silicon content in the rod thickness center and at lower salt bath temperatures.
One of the most compelling discoveries was the heat treatment process employing a 440°C salt bath followed by tempering at 680°C. This combination effectively increases the number of graphite nucleation sites during the tempering process of free-cutting graphited steel. Building upon this optimized process, increasing the base carbon and silicon content can accelerate and promote the massive nucleation of graphite particles in the size range of 1 μm to 3 μm during tempering.
The commercial implications for the energy sector are substantial. High silicon graphited steel is widely used in various energy applications, from power generation to renewable energy technologies. The improved quality and performance of these materials can lead to more efficient and reliable energy systems, ultimately driving down costs and enhancing sustainability.
After undergoing the 440°C salt bath and 680°C tempering treatment, the graphite particle densities in the thickness center of the non-soft-reduction and soft-reduction rods were remarkably high, reaching 24,434 particles/mm² and 32,675 particles/mm², respectively. The graphite particle sizes in both cases were predominantly within the 1 μm to 3 μm range, indicating a significant improvement in material properties.
As the energy sector continues to evolve, the findings from this research could shape future developments in material science. By optimizing the soft-reduction process and heat treatment parameters, manufacturers can produce high silicon graphited steel with superior properties, paving the way for more advanced and efficient energy technologies.
In the words of Qi Fengyou, “This research is a testament to the power of innovation and the potential it holds for transforming industries. It’s not just about improving materials; it’s about driving progress and creating a better future.”
Published in *Teshugang*, this groundbreaking study offers a glimpse into the future of high silicon graphited steel, highlighting the critical role of soft-reduction processes and heat treatments in enhancing material performance. As the energy sector continues to demand higher standards and greater efficiency, these findings provide a roadmap for achieving those goals, ensuring that the materials of tomorrow are as robust and reliable as they are innovative.
