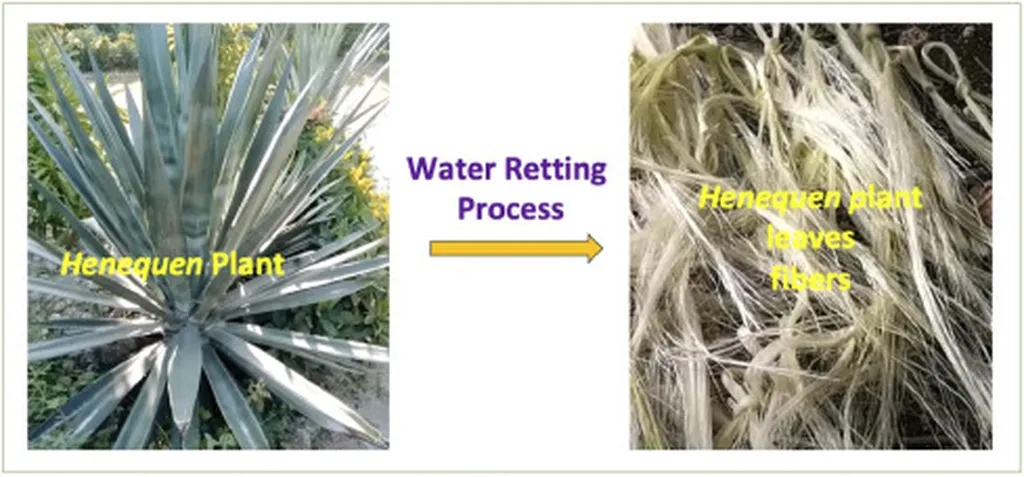

In the quest for sustainable materials that can withstand the rigors of structural applications, researchers have turned to an unlikely ally: the henequen plant, a hardy agave native to Mexico. A recent study led by Carlos Roberto Ibáñez Juárez from the Tecnológico Nacional de México/Instituto Tecnológico de Pachuca has unveiled promising results for bio-composites made from henequen fiber, potentially opening new avenues for the energy sector and beyond.
The research, published in *Materials Research Express* (which translates to *Expressions of Materials Research*), compares the mechanical properties of two types of composites: one made with epoxidized vegetal oil (EVO) and another with synthetic epoxy, both reinforced with henequen fiber. The findings suggest that these bio-composites could be a viable alternative to traditional materials, offering a more eco-friendly option without compromising on performance.
“Biocomposite and bio-synthetic composite show a flexural modulus of 5.7 GPa and 5.65 GPa, and 88 and 89 MPa of flexural strength, respectively,” Juárez explained. This indicates that both types of composites have similar flexural properties, which are crucial for applications requiring stiffness and strength under bending loads.
However, the type of resin used significantly influenced the tensile and impact properties. The biocomposite exhibited an ultimate tensile strength of 72 MPa, compared to 60 MPa for the bio-synthetic composite. “Even when biocomposite and synthetic composite showed a similar elasticity modulus, around 6.3 GPa, the difference can be appreciated for the ultimate tensile strength,” Juárez noted. This suggests that the natural resin might offer better tensile performance, which is essential for applications subjected to tensile stresses.
The low-energy impact test results were also promising. The biocomposite absorbed more energy at lower impact levels, showing a maximum absorption of 124 kJ m^−1 at 5J, compared to 104 kJ m^−2 for the bio-synthetic composite. This could be particularly beneficial for applications where impact resistance is a critical factor, such as in protective structures or components exposed to dynamic loads.
Scanning Electron Microscopy (SEM) revealed that the failure mechanisms in both composites involved fiber-matrix interface separation, fiber pull-out, and fiber breakage. Understanding these failure modes is crucial for optimizing the design and manufacturing processes of these materials.
The implications of this research are significant for the energy sector, where there is a growing demand for sustainable and durable materials. Bio-composites based on henequen fiber could be used in the construction of wind turbine blades, solar panel frames, and other structural components, reducing the environmental impact of these energy systems.
Moreover, the use of natural fibers like henequen could help reduce dependence on synthetic materials, which often rely on finite resources and have a higher carbon footprint. This shift towards bio-based materials aligns with the global push for sustainable development and circular economy principles.
As the world continues to grapple with the challenges of climate change and resource depletion, innovations like these bio-composites offer a glimmer of hope. They demonstrate that it is possible to create high-performance materials that are also environmentally friendly, paving the way for a more sustainable future.
In the words of Juárez, “With these results, bio-composites based on henequen fiber can be an alternative material for structural applications.” This research not only advances our understanding of bio-composites but also highlights the potential of natural fibers in shaping the future of materials science and engineering.
