In the relentless pursuit of enhancing material performance, researchers have made a significant stride in improving the fatigue resistance of low alloy steel, a material widely used in the energy sector. Mahmood A. Mohammed, from the Department of Mechanical Techniques at the Technical Institute Kirkuk, Northern Technical University in Iraq, has led a study that could potentially reshape how we approach surface hardening in industrial applications.
The research, published in the *International Journal of Emerging Research in Engineering, Science, and Management* (translated as *Journal of Emerging Research in Engineering, Science, and Management*), focuses on the effect of gas nitriding on the fatigue resistance of low alloy steel EN 1.8509 (41CrAlMo7-10). This process involves heating the metal in a nitrogen-rich environment to infuse nitrogen into the surface, creating a hardened layer that enhances durability.
Mohammed and his team discovered that gas nitriding at temperatures ranging from 475 to 610°C significantly boosted the fatigue resistance of the steel. The optimal temperature range was found to be between 475 and 510°C, where the fatigue resistance peaked at 580 MPa. This is a substantial improvement compared to the original fatigue resistance of 325 MPa. However, the study also revealed that higher temperatures, around 610°C, led to a decrease in fatigue resistance, dropping to 400 MPa.
“The key finding here is the significant improvement in fatigue resistance at lower temperatures,” Mohammed explained. “This suggests that we can achieve better performance without resorting to extremely high temperatures, which can sometimes compromise the material’s integrity.”

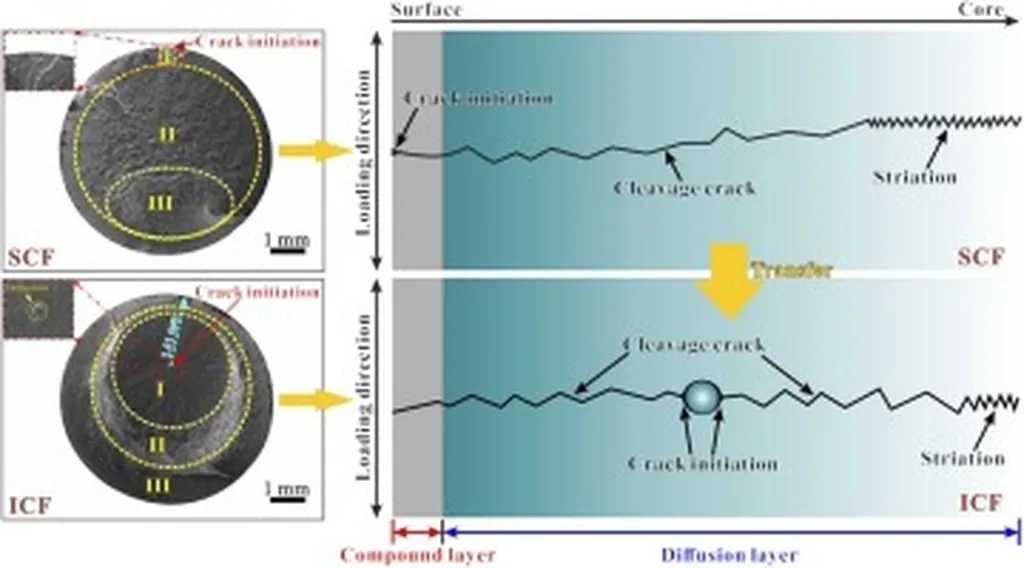

The research also highlighted the formation of various nitrides, such as Fe3N, Fe4N, Cr2N, Fe2Al5, and Al2N, which play a crucial role in increasing hardness and improving fatigue resistance. The micro-hardness and tensile tests confirmed an increase in surface and overall hardness for all treated samples. Notably, the hardness gradually decreased as the depth increased, ensuring a smooth transition from the hardened surface to the softer core. This gradual transition is crucial for avoiding sudden failures and enhancing the material’s longevity.
The implications of this research for the energy sector are profound. Low alloy steel is widely used in pipelines, pressure vessels, and other critical components where fatigue resistance is paramount. By optimizing the gas nitriding process, engineers can extend the lifespan of these components, reduce maintenance costs, and improve overall safety.
“This study opens up new avenues for enhancing the performance of low alloy steel in demanding applications,” Mohammed added. “It’s not just about making the material harder; it’s about making it more reliable and durable in real-world conditions.”
As the energy sector continues to evolve, the demand for materials that can withstand extreme conditions will only grow. This research provides a valuable tool for engineers and researchers to optimize surface hardening processes, ensuring that the materials used in critical applications are as robust and reliable as possible.
In the broader context, this study underscores the importance of continuous innovation in materials science. By pushing the boundaries of what is possible, researchers like Mahmood A. Mohammed are paving the way for advancements that can have far-reaching impacts across various industries. The journey towards better, stronger, and more durable materials is ongoing, and this research is a significant step forward in that journey.
